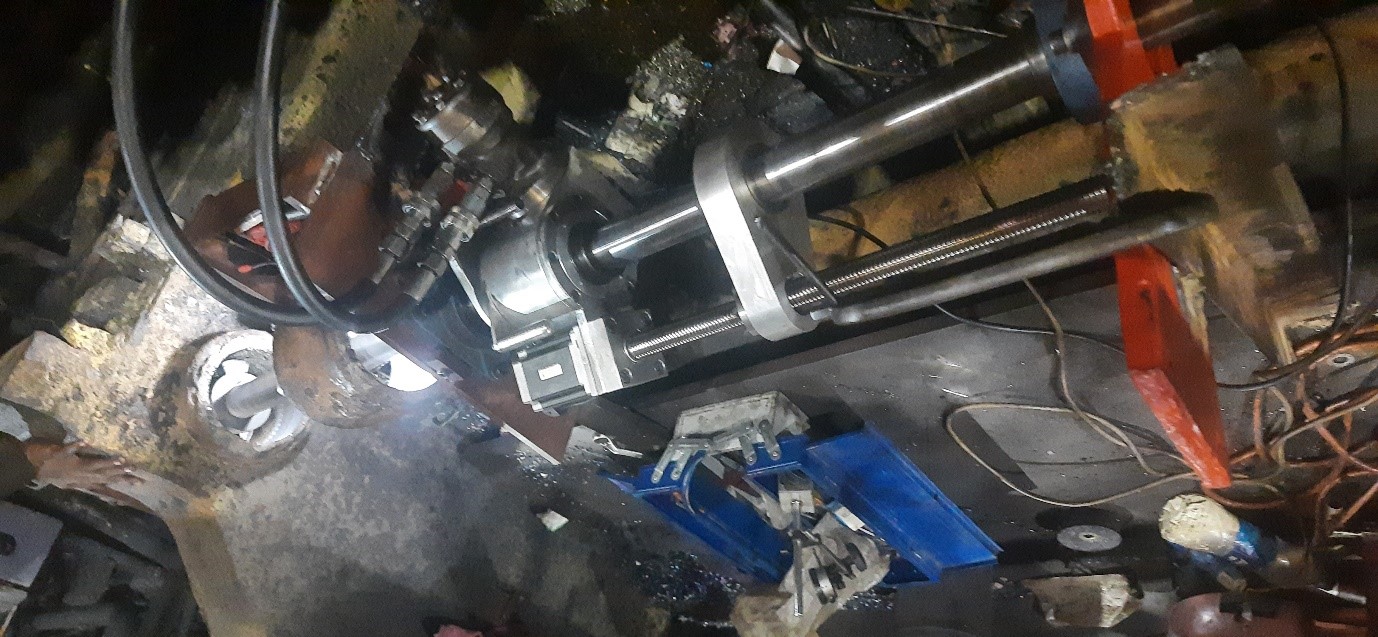

BB06

BB06 Specification

a. Bar Diameter: 60 mm (2.36 inches)

b. Boring Diameter: 60 – 300mm (2.36 – 11.8 inches)

c. Max. Stroke: 350mm (13.78 inches)

d. Torque at Bar:

e. 60 Nm (45 ft lbs)

f. Power Option: Electric and Hydraulic

Application

• - Gearbox parts and housings

• - Various applications in shipbuilding, including rudder parts and stern tubes

• - Driveshaft housing

• - A-frame supports

• - Hinge pins

• - Turbine casing

• - Engine Bedplates

• - Cylinder Liner locations

• - Clevis plate bores
