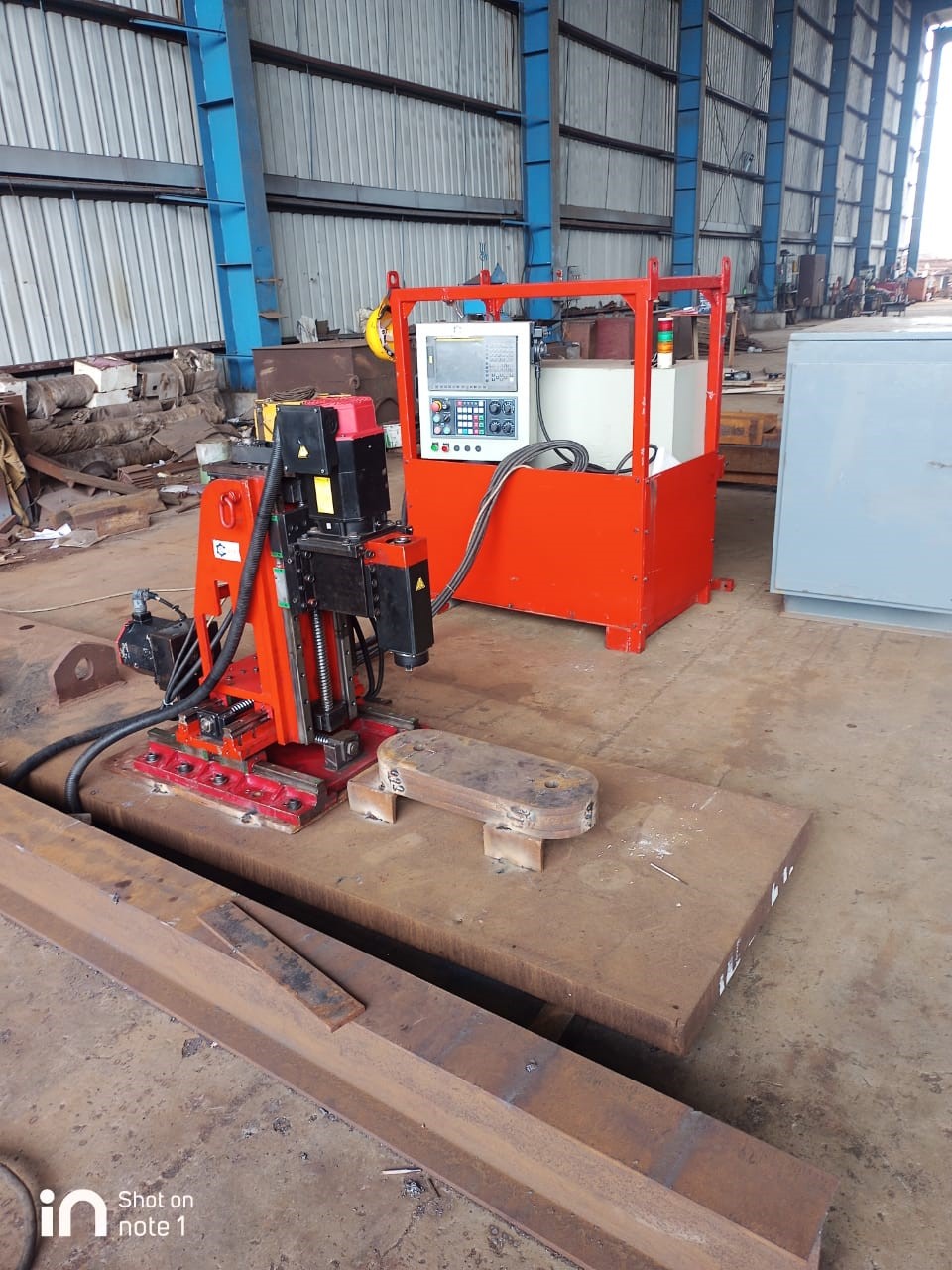

MG-CNC-HM-02 Specification

a. CNC controlled: FANUC Oi-MF milling system software provides detailed real-time feedback on tool positioning and machine operation.

b. Designed to bore and thread hole diameters ranging from 22.2mm – 330mm (0.875" – 13").

c. Hole depths up to 400mm (≈16")

d. High tolerance profile rails produce consistent results.

e. All three axes utilize precision ground ball screws, providing precise movement of the milling head.

f. Accurate and repeatable machining.

g. A cold cutting operation.

h. Ejects chips during operation.

i. Single machine capable of both drilling and threading.

Application

  • Match drilling and thread milling

  • WEP Taper bore milling on round surface

  • Nozzle cut out hole milling

  • precision boring and profile milling

  • Gearbox parts and housings

  • Turret Link pin removal

  • A-frame supports

  • Hinge pins

  • Turbine casing

  • Engine Bedplates

  • Anvil fixing hole milling and thread milling

  • Packet milling,

  • Key way machining,

  • Drilling

  • Boring

  • Step boring

  • Thread milling,

  • Taper bore machining,
