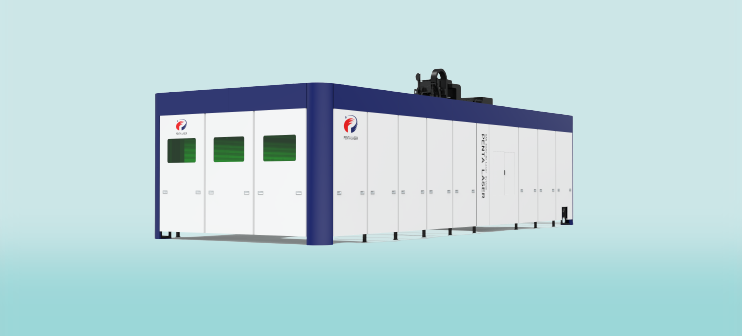

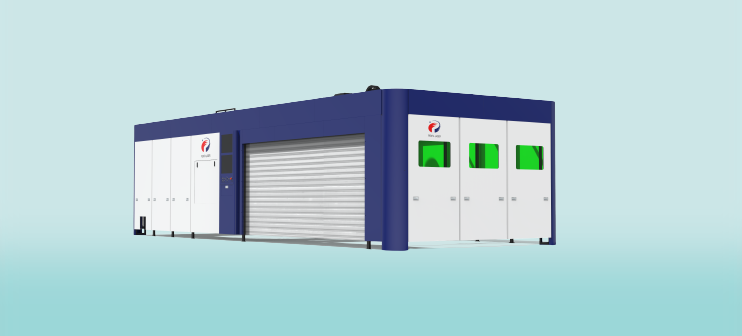

The GAN Model 3D Fiber Laser Cutting Machine uses a zero-profit strategy to promote Penta’s state-the-of-art technology and its reliable user experience. Built with a superior configuration, equipped with fully advanced technology, and utilizing high quality components such as the unique 3D Cutting Head from Italy, IPG laser source and Italian professional Controller. The GAN Model 3D Fiber laser cutting machine is a reliable solution and widely used in automobile industry and is available from laser power from 2kW-4kW.
| Sl. No | Specifications | Modal |
|---|---|---|
| 1. | Machine Specifications | GAN 4015 3D |
| 2. | Laser power | 4000 W |
| 3. | X-axis | 4000 mm |
| 4. | Y-axis | 1500 mm |
| 5. | Z-axis | 750 mm |
| 6. | B axis | N*360° |
| 7. | C axis | ± 135° |
| 8. | H axis | ± 10 mm |
| 9. | Y, Z Accuracy | ± 0.05 mm/m |
| 10. | X, Y, Z Repeatability | ± 0.03 mm |
| 11. | A/C Rotate Accuracy | ± 0.015° |
| 12. | A/C Rotate Repeatability | ± 0.005° |
| 13. | Max. rapid speed | 100 m/mm |
| 14. | A/C Rotate Speed | 360°/s |
| 15. | A/C Rotate Acceleration | 60 rad/s2 |
| 16. | Maximum Loading | 1000 Kg |
| 17. | Phase | 3 |
| 18. | Rated voltage | 380 V |
| 19. | Frequency | 50 Hz |
| 12. | Total power protection class | IP54 |
