SWING

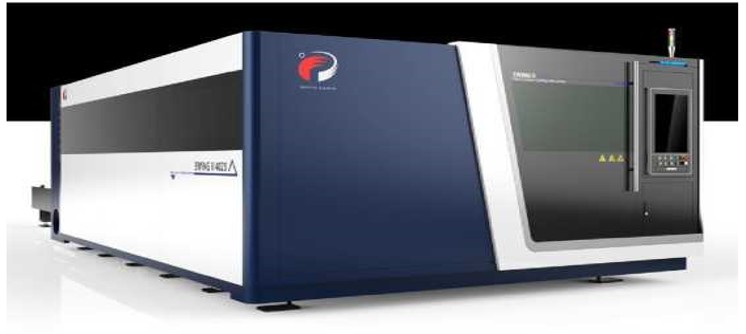

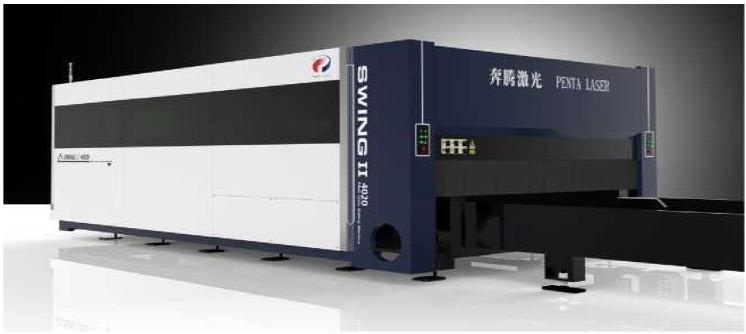

The SWING Fiber Laser Cutting Machine uses a zero-profit strategy to promote Penta’s state-the-of-art technology and its reliable user experience. Built with a superior configuration, equipped with fully advanced technology, and utilizing high quality components such as the Precitec cutting head and IPG laser source, the SWING Fiber cutting machine is a reliable, high accuracy laser cutting machine that will not "break the bank”. This laser cutting machine is the best choice for processing thin and medium-thin plates, and is available with a range of laser powers and is available with a range of laser powers from 1kW-12kW.

Get In Touch Request for Demo

Laser

  • Best Performance, High Cost Effective
  • Available in Laser Powers 1 – 12 kW laser source
  • IPG/Raycus Laser Source
  • Precitec Auto Focus Cutting Head
  • Ultra-Fast cutting function.
  • Available in 3015, 4020, 4025, 6020, 6025, 8025

Main Parameters

Sl. No Specifications Modal
1. Table Travel SWING II 3015 || 3000*1500 mm, SWING II 4020 || 4000*2000 mm, SWING II 4025 || 4000*2500 mm, SWING II 6020 || 6000*2000 mm, SWING II 6025 || 6000*2500 mm, SWING II 8025 || 8000*2500 mm
2. Accuracy (VDI 3441) ± 0.03 mm/m
3. Mechanical Repeatability ± 0.01 mm/m
4. Rapid Speed 140 m/min
5. Maximum Acceleration 1.5 G
6. Laser Power Options 1 kW - 12 kW
7. Laser Source Options IPG / Raycus / Max
